Group 17 – Springs

Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting

17-A Spring and Bushings
Year and Model17-11-1
Front Spring Bumper Assy
2 req'd
1928 — Q43281
1929 — U43281
1930 — 30-U43281
1931 — PA323803
1932 — PB323803
1933 — PCSee note 1
1933 — PD609886
1934 — PE620559
1934 — PF620559
1936 — P1See note 2
1936 — P2See note 3
1939 — PT8143281
1940 — PT10543281
Note 1
PC up to 1791708 (L.H.D.) and 1792154 (R.H.D.), U.S. built and 9311869 Canadian build use part 600328.
PC from 1791708 to 1817101-3000610 (L.H.D.) and after 1792154 (R.H.D.), US built and from 9311869 to 9312255 Canadian built use part 609886.
Note 2
W/O fender wells use part no. 619084
20" wheels use part no. 660112
Note 3
W/O fender wells use part no. 619084
20" wheels use part no. 660112
With fender wells after 2861045 use part no. 654391
Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting
609886Spring bumper assembly (front) (attached to frame)
 Associated parts:
  123480Spring bumper assembly bolt ‡8 (PC, PD)

17-D Spring Shackles
?5Front spring shackle assembly (PC, PD)
 Associated parts:
  605558Bushing and plug assembly (lower)
  601328Bushing and plug assembly (upper) ‡2
  601310Front spring shackle ‡2
 Interchange/Vendor:
  Rare Parts35500Rear of front springs
?6Rear spring shackle assembly
 Associated parts:
  605558Bushing and plug assembly (PC) ‡4
  600298Bushing and plug assembly ‡2
  600297Rear spring shackle (PD) ‡2
 Interchange/Vendor:
  Rare Parts35501Rear of rear
600279Spring silent block assembly (PC, PD)
 Interchange/Vendor:
  Rare Parts35993

17-E Shock Absorber

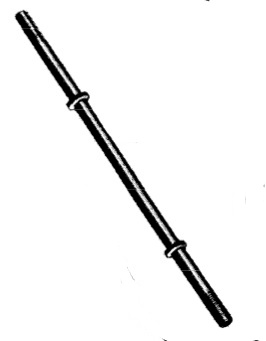

Year and Model17-23-0617-23-0817-27-09
17-27-09
17-27-10
17-27-10
17-27-13
17-27-13
17-27-14
17-27-14
Front Shock Absorber AssemblyRear Shock Absorber AssemblyShock Absorber Link RodShock Absorber Link NutShock Absorber Link GrommetShock Absorber Link Grommet Retainer
16 inch wheels18 to 20 inch wheels16 inch wheels18 to 20 inch wheelsFrontRearUpperLower
2 req'd2 req'd1 req'd1 req'd2 req'd2 req'dAs req'dAs req'dAs req'dAs req'd
1933 — PC    Delco-Lovejoy 48220Delco-Lovejoy 48221Delco-Lovejoy 43469Delco-Lovejoy 43467Delco-Lovejoy 43467Delco-Lovejoy 43468
1933 — PD     Delco-Lovejoy 48221Delco-Lovejoy 43469Delco-Lovejoy 43467Delco-Lovejoy 43467Delco-Lovejoy 43468
1934 — PE      Delco-Lovejoy 43469Delco-Lovejoy 43467Delco-Lovejoy 43467Delco-Lovejoy 43468
1934 — PF     Delco-Lovejoy 1061077Delco-Lovejoy 43469Delco-Lovejoy 43467Delco-Lovejoy 43467Delco-Lovejoy 43468
1934 — PG    Delco-Lovejoy 48220Delco-Lovejoy 1061077Delco-Lovejoy 43469
1936 — P1See note 1   See note 18See note 19391841609892391842391843
1936 — P2See note 2 See note 10See note 10See note 18646444391841609892391842391843
1936 — P2 Limo and 7 passSee note 3   See note 18662306120371609892391842391843
1937 — P3689680  674475
1937 — P4689680  674475
1937 — PT50689682 1135545854565
1938 — P5689680689680 854565
1938 — P6689680689680 854565
1938 — PT57689682 1135545
1939 — P7See note 4 See note 11See note 17
1939 — P8See note 4 See note 12See note 17
1939 — P8 Limo and 7 passSee note 5
1939 — PT81 11944731092541
1940 — P10See note 6 See note 13854565
1940 — P10 Limo and 7 passSee note 7
1940 — P9See note 6 See note 13854565
1940 — PT105 11944731092541
1941 — P11See note 8 See note 14854565
1941 — P12See note 8 See note 14854565
1941 — PT125 11944731092541
1942 — P14See note 8 See note 15
1946-48 — P15See note 9See note 9See note 16See note 16
Note 1
Right side use part 654359, left side use part 654360.
Note 2
Right side use part 663562, left side use part 663563.
Note 3
Right side use part 654735, left side use part ?.
Note 4
Extreme duty use part 1238525, Std. Adj. use 1121207, Adj o/s use 1122763
Note 5
16" wheels use part 1121207
Note 6
18"-20" wheels and commercial duty use 1121207, Super Control use part 1238525, Adj. s/o use part 1122763.
Note 7
Up to serial number 10987953 (16" wheels) use part 1121207.
Note 8
18" wheels and commercial duty use part 1121207, Super Control use part 1238525, Adj. s/o use part 1122763.
Note 9
P15 Monroe 1 inch (Commercial duty) use part number 1121207.
P15 Delco 1 3/8 inch use part number 1122763.
Note 10
Right use part 651490, left side use 651491
Note 11
Extreme duty use part 1135547, Comm. duty use part 695825.
Note 12
Extreme duty use part 1135547, Extreme duty use part 1135547, Comm. duty use part 695825.Comm. duty use part 695825.
Note 13
Super Control use part 1135547, Comm. duty use 1135545.
Note 14
Use part ** (std.) or part 1122764 (Spec. o/s).
Note 15
Except Sub. use part ** (std.) or part 1122764 (Spec. o/s). Sub. use part 1121211 (Std.) or part 1122764 (Spec. o/s).
Note 16
P15 suburban up to 11846593 use part 1121211.
P15 suburban after 11846593 use part 1135548.
P15 Monroe 1 inch (Commercial duty) use part number 1135545.
P15 Delco 1 3/8 inch use part number 1122764.
Note 17
Use part 695825 or part 854565 (Order by part number as stamped on shock abs.)
Note 18
P1 (16 inch wheels) use part number 654380. P1, P2 (20 inch wheels) use Part Number **
Note 19
P1, P2 (20 inch wheels) use part number 660110.
Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting
1122763Shock absorber assembly (OEM was Delco and is 1 38" diameter)
 Interchange/Vendor:
  NAPALE 10002
1122764Shock absorber assembly (OEM was Delco and is 1 38")
 Interchange/Vendor:
  Gabriel82156
  NAPARR 94008
