Group 14 – Fuel

Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting

14-A Accelerator and Throttle Controls
Year and Model14-01-0114-01-0214-01-18
14-01-18
14-07-10
Accelerator Pedal AssemblyAccelerator Pedal Foot RestAccelerator Pedal (Pivot) ButtonAccelerator Pedal Stem Boot
1 req'd1 req'd2 req'd1 req'd
1928 — Q415533128237954
1929 — USee note 151659See note 3
1930 — 30-U5169351659
1931 — PA37569433470337954
1932 — PBSee note 2 359301
1933 — PC451964 451965
1933 — PD451964 451965
1934 — PE451964 472246462348
1934 — PF451964 451965n/a
1936 — P1451964 See note 4498221
1936 — P2451964 See note 4498221
1937 — P3745979 n/a498221
1937 — P4745979 n/a498221
1937 — PT50451964 451965n/a
1938 — P5745979 See note 4498221
1938 — P6745979 See note 4498221
1938 — PT57451964 451965n/a
1939 — P7798188 n/a498221
1939 — P8798188 n/a498221
1939 — PT81974405 451965n/a
1940 — P10798188 945636498221
1940 — P9798188 945636498221
1940 — PT105797919 451965n/a
1941 — P11798188 945636498221
1941 — P12798188 945636498221
1941 — PT125974405 451965n/a
1942 — P14974405 945636498221
1946-48 — P15974405 945636498221
Note 1
Up to Y-204-PP U.S.built and after GC-413-U Canadian built use 51693
Note 2
Right hand drive use 334703, others use 451964.
Note 3
Up to Y-204-PP U.S. built and GV-413-W Canadian built use 37954
Note 4
Coupes use 451965, others use 945636.
Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting
451964Accelerator pedal (PB, PC, PD, PE, PF)
 Interchange/Vendor:
  Andy Bernbaum Auto PartsC401

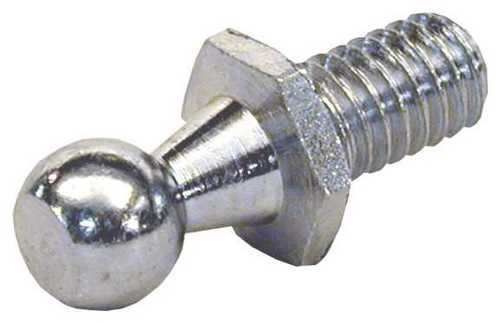

945636Part945636Accelerator Pedal Button
 Interchange/Vendor:
  NAPABK 7351896Ball stud
972950Accelerator pedal
 Interchange/Vendor:
  Steele Rubber Products70-1806-89Brown
974405Accelerator pedal
 Interchange/Vendor:
  Steele Rubber Products70-1806-40Black

14-C Carburetor
601425Carbureter gasket (flange) (PC, PD)
 Interchange/Vendor:
  Victor5200-KT
C-6-A-2Carburetor (PC, PD)

14-I Gasoline Gauge Tank Unit
Year and Model14-72-0114-72-0214-72-1014-72-11
Fuel Gauge Tank Unit AssemblyFuel Gauge Tank Unit GasketFuel Gauge Tank Unit Mounting ScrewFuel Gauge Tank Unit Mounting Screw Washer
Standard Tank20.4 Gallon Tank
1 req'd1 req'd1 req'd5 req'd5 req'd
1930 — 30-U312146 55985 72936
1931 — PASee note 1 55985132760312941
1932 — PBSee note 2 55985132760312941
1933 — PC393455 55985132760312941
1933 — PD604149 55985132760312941
1934 — PE604149 55985617408312941
1934 — PF604149 55985617408312941
1934 — PG  55985
1936 — P1648438  121832312941
1936 — P2648438  121832312941
1937 — P3678391678392 121832312941
1937 — P4678391678392 121832312941
1938 — P5678391678392 121832312941
1938 — P6678391678392 121832312941
1939 — P7691777  121832312941
1939 — P8691777  121832312941
1939 — PT81591146  121832312941
1940 — P10857378  121832312941
1940 — P9857378  121832312941
1940 — PT105591146  121832312941
1941 — P11857378  121832312941
1941 — P12857378  121832312941
1941 — PT125591146  599677312941
1942 — P14857378  121832312941
1946-48 — P151120552  121832312941
Note 1
Canadian built after 9308749 use 312146. Others use 378515
Note 2
Convertible sedan uses 378626, others use 378515
Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting

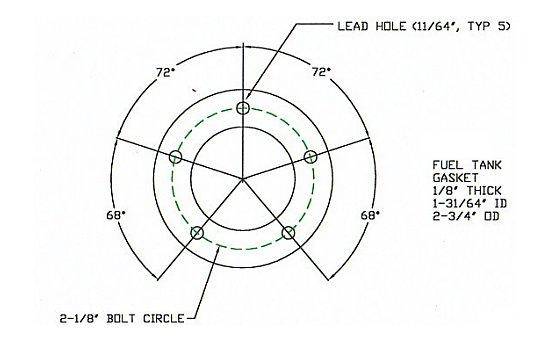

55985Part55985Fuel Gauge Tank Unit Gasket

14-J Fuel Pump
Year and Model14-73-0214-74-0114-80-02
14-80-02
14-80-04
14-80-04
14-80-05
14-80-05
14-81-0114-81-02

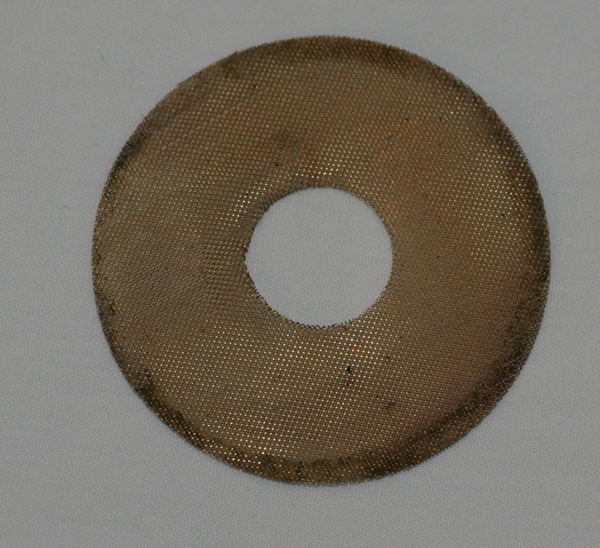

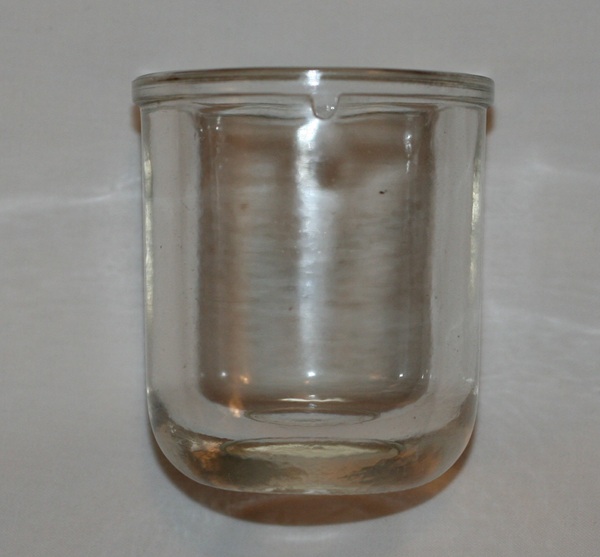

Fuel Pump AssemblyFuel Pump Flange GasketFuel Pump ScreenFuel Pump Strainer BowlFuel Pump Strainer Bowl GasketFuel Pump Heat ShieldFuel Pump Heat Shield Stud
Non-booster TypeBooster TypeNon-booster type pumpBooster type pump
1 req'd1 req'd1 req'd1 req'd1 req'd1 req'd1 req'd1 req'dAs req'd
1930 — 30-UAC 855471n/a300564 See note 5See note 6
1931 — PAAC 855471n/a300564 AC 854004AC 854003See note 11
1932 — PBSee note 1n/a300564 AC 854004AC 854003385398
1933 — PCAC 1521211n/a300564 AC 854004AC 854003
1933 — PDAC 1521211n/a300564 AC 854004AC 854003
1934 — PEAC 1521211n/a300564 AC 854004AC 854003
1934 — PFAC 1521211n/a300564 AC 854004AC 854003
1934 — PG  300564
1936 — P1659488n/a688482639104639106639110854413 608138
1936 — P2659488n/a688482639104639106639110854413 608138
1937 — P3659488860141688482See note 4 639110854413668898608138
1937 — P4659488860141688482See note 4 639110854413668898608138
1937 — PT50659488n/a688482639104639106639110854413 608138
1938 — P5659488See note 2688482  See note 7854413See note 13608138
1938 — P6659488See note 2688482  See note 7854413See note 13608138
1938 — PT57659488n/a688482639104639106639110854413 608138
1939 — P7683056684582688482  See note 81124224684278See note 14
1939 — P8683056684582688482  See note 81124224684278See note 14
1939 — PT81659488n/a688482639104639106639110854413 608138
1940 — P10683056684582688482  See note 91124224684278See note 15
1940 — P9683056684582688482  See note 91124224684278See note 15
1940 — PT105659488n/a688482639104639106639110854413 608138
1941 — P11683056684582688482  See note 91124224684278See note 15
1941 — P12683056684582688482  See note 91124224684278See note 15
1941 — PT125659488n/a688482639104639106639110854413 608138
1942 — P14683056684582688482  See note 91124224684278See note 14
1946-48 — P15683056n/aSee note 3  See note 10See note 12 See note 15
Note 1
AC 1521014 (E series pump) or AC 1521200 (P series pump)
Note 2
P5, P6 up to engine 283766 use part 860141.
P5, P6 after engine no. 283766 use part no. 684582.
Note 3
Up to engine number 106589 and from 112737 to 291784, also from 317251 to 317772 use part number 688482. Others use part number 1117482.
Note 4
For P3, P4 with 667623 pump use part 639104.
Note 5
AC 854004 (after car serial number 1517571)
Note 6
Part AC 854003 (after car serial number 1517571)
Note 7
part 639110 (for 683056-684582 pumps use part number 689504).
Note 8
For 683056-684582 pumps use part number 689504.
Note 9
For 683056-695805-808 pumps use part number 689504.
Note 10
For 683056-695805-808 pumps use part number 689504. For 1117535 pump use part number 1141778
Note 11
After engine number PA-94463 use part number 385398
Note 12
Before engine number 641530 use part number 1124224. After engine number 641530 use part 1142990
Note 13
Up to engine number 283766 use 668898, after engine number 283766
Note 14
Use part number 690744 for pump 695805. Use part number 683861 for pumps 854356, 860141, 683056 and 695808.
Note 15
Use part number 683861 for pumps 854356, 860141, 683056 and 695808
Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting

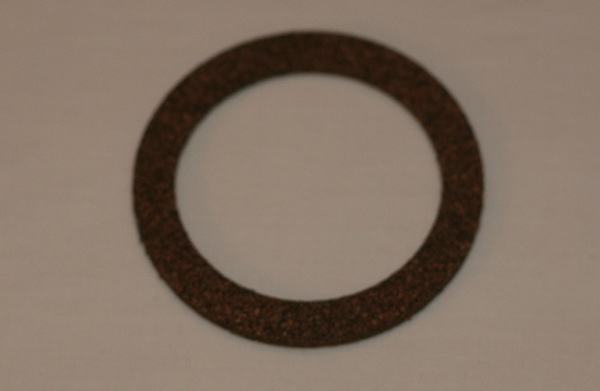

639110Fuel Pump Strainer Bowl Gasket
 Interchange/Vendor:
  NAPAFPG 773
683056Fuel pump assembly
 Interchange/Vendor:
  AC588A
  NAPANFP M847
  Airtex732012014 re-issue of AC588 fuel pump.

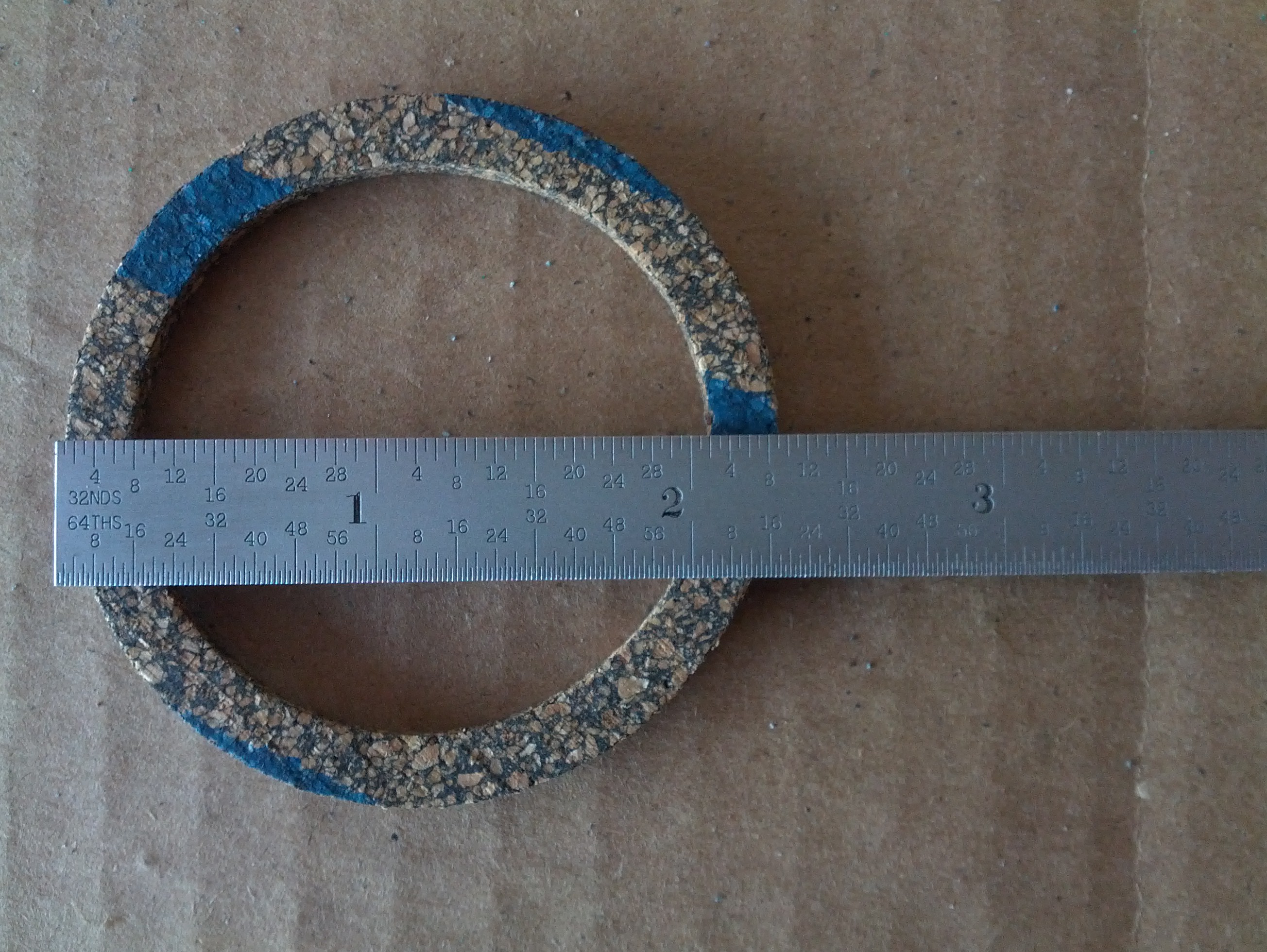

689504Part689504Fuel Pump Strainer Bowl Gasket
 Interchange/Vendor:
  NAPAFPG 5019
  VictorD35288
1141778Fuel Pump Strainer Bowl Gasket
 Interchange/Vendor:
  NAPAFPG 5019

14-K Gasoline Tank
Year and Model14-86-1314-86-48
Fuel Tank Drain PlugFuel Tank Filler Tube Hose (3 Foot Lengths)
1 req'das req'd
1928 — Q103865
1929 — U103865 or 103866
1930 — 30-U103865
1931 — PA103865 or 118831
1933 — PC113175
1933 — PD113175
1934 — PE113175
1934 — PF113175
1936 — P1143932780182
1936 — P2143932780182
1937 — P3112578780182
1937 — P4112578780182
1937 — PT50113935780182
1938 — P5112578780182
1938 — P6112578780182
1938 — PT57113935780182
1939 — P7112578780182
1939 — P8112578780182
1939 — PT81113935780182
1940 — P10See note 1780182
1940 — P9See note 1780182
1940 — PT105113935780182
1941 — P11112304780182
1941 — P12112304780182
1941 — PT125113935780182
1942 — P14112304780182
1946-48 — P15See note 2780182
Note 1
P9, P10, use either part number 112578 (1/4") or part number 112304 (3/8").
Note 2
P15c up to 11548134, P15s up to 15165003 use part number 112304.
P15c after 11548134, P15s after 15165003 use part number 1122359.
Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting
780182Fuel Tank Filler Tube Hose (3 Foot Lengths)
 Interchange/Vendor:
  NAPANBH 1055
  Gates23936
  NAPANBH 113520 psi rated.

14-L Gasoline Tubing
Year and Model14-89-57
Fuel line hose assembly
1 req'd
1936 — P11057835
1936 — P21057835
1937 — P3965708
1937 — P4965708
1937 — PT501057835
1938 — P5965708
1938 — P6965708
1938 — PT571057835
1939 — P7965708
1939 — P8965708
1940 — P10965708
1940 — P9965708
1940 — PT1051057835
1941 — P11965708
1941 — P12965708
1941 — PT1251057835
1942 — P14965708
1946-48 — P15See note 1
Note 1
P15S up to serial number 15233181 Detroit built, 22059334 Evansville built, 26007890 Los Angeles built, P15C up to serial number 11735315 Detroit built, 20207529 Evansville built, 25023210 Los Angeles built, use part number 965708.
P15S, P15C after the above effective points use part number 1136282.
Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting
386736Part386736Clip (frame) (PC, PD)
386901Coupling (frame) (PC)
388576Gasoline tube assembly (from tube to fuel pump) (flexible) (PB, PC, PD, PE, PF, CI, CP, CH, CL, CO, CA, CB, CU, CV, CX, CY, CZ, C1, C2, C3, C6, DR, DS)
601545Coupling (frame) (front end) (PC, PD)
1136282Fuel line hose assembly
 Interchange/Vendor:
  NAPAWH 11079
x600000Gasoline tube assy.
 Associated parts:
  137398Inverted flared tube nut. 516-20, cad plated steel. ‡1 (PB, PC, PD)
  137421Inverted flared tube elbow. 14-24 to 18" pipe thread. Plain brass. ‡1 (30-U, PD)
  137422Inverted flared tube elbow. 516-20 to 18" pipe thread. Plain brass. ‡1 (PB, PD)
  386736Clip (frame) ‡5 (PC, PD)
  386901Coupling (frame) ‡1 (PC)
  388102Nipple ‡1 (PB, PD)
  601545Coupling (frame) (front end) (PC, PD)
