1929 Plymouth
(Engineering Code U)

Unless otherwise noted, price, engine numbers and body type production data is from [Bowman 1988a]. Specifications are from [Chrysler 1975] and serial numbers are from [Chrysler 1973]. Weights are from [Kimes 1996]. Production dates are from [benj 2007]. Paint information is from [Chrysler 1929b].

Highlights and commentary
Production and serial numbers
Specifications
Four Door Sedan
Deluxe Four Door Sedan
Standard Coupe
Two Door Sedan
Deluxe Coupe

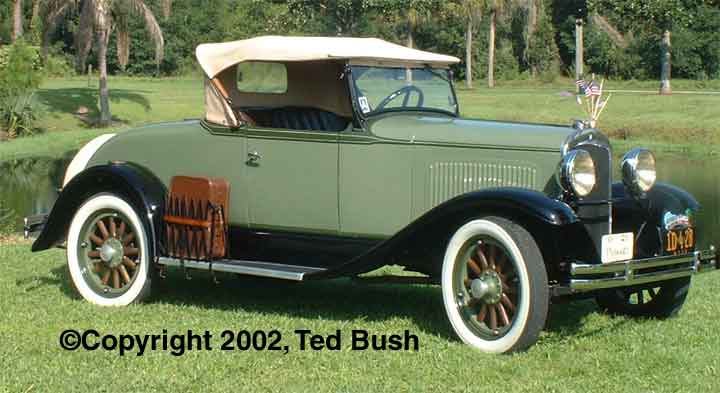

Rumble Seat Roadster
Touring

Highlights

Rubber motor mounts are the major mechanical change for this model.

Production

Model Name	Production		Plant	Serial Number		Engine Number
Model Name	Began	Ended	Plant	Began	Ended	Began	Ended
4	January 7, 1929	March 7, 1930	Detroit	RR-120-P	RD-999-D	U999	U110000
			Detroit	Y-000-WP	Y-403-EP
			Windsor	GP-583-W	GC-499-L

Specifications

Wheel base	Num Cylinders	Bore and Stroke	Cu. In.	Compression	BHP
109	4	3-5/8x4-1/4	175.4	4.6	45@2800

For download speed reasons, Detailed Specifications and Standards of Adjustment are found on a separate page.

Paint

[Chrysler 1929b], dated May 21, 1929, announced the availability of additional colors for the Plymouth line of cars. This implies that the early model U cars may have used the colors available for model Q cars. Since [Chrysler 1929b] also states “These standard colors will be changed from time to time without previous notice as has been our practice in the past” there is the possibility that other colors had been used.

Interestingly, [Chrysler 1929b] explained that “standard” colors could not be specified on regular orders from the dealer. The orders were filled with what ever color car was available at the factory. Apparently the factory ran a few days using one color, then switched over to another. What ever they were building when the order came in is what was shipped. “Optional” colors, apparently specifying one of the standard colors on an special order, was an additional fee.

The Du Pont Duco and PPG Mimax color numbers below are from [Chrysler 1929a] and do not show numbers for colors that became available later in the year. Some of these same names appear in colors for later years but it is not clear at this point if they are the same colors.

Color Name	Du Pont Duco Number	PPG Mimax Number
Atkin Gray
Ardlsey Green	2443038	ML3292
Biscay Green	2441258
Black
Bolling Green Medium	2445348	ML3195
Buckingham Gray
Chrysler Light Gray
Cigarette
Coach Blue Deep	2443268	ML3196
Desert Sand	2441313	ML3193
Dundee Gray
Emerald Green
Gualda Grey Lt.
Mandarin Vermillion
Marine Blue	2441332	ML3262
Marquette Blue
Mexican Turquoise
Moss Agate Green	2445181	ML3478
Moonstone Gray	2445118	ML3289
Norman Gray	2445596	ML3197
Pyramid Gray	2441314	ML3194
Primrose Yellow	2445161	ML3288
Russet Brown		ML3243
Thorn Maroon
Tobacco Brown		ML3242
Top Gallant Blue

Paint Codes

See note about paint and trim.

Code	Body	Fenders & Sheet Metal	Stripe	Wheels

Trim Codes

See note about paint and trim.

Code	Description

Four Door Sedan

Price	Number Built	Weight
$695		2510

Body Overall	Beads and moulding	Fenders & Sheet Metal	Stripe	Wood wheels	Wire wheels
Top Gallant Blue	Marquette Blue	Black	Swamp Holly Orange	Marquette Blue	Swamp Holly Orange
Marquette Blue	Marquette Blue	Black	Extra Perm. Vermillion	Marquette Blue	Extra Perm. Vermillion

Deluxe Four Door Sedan

Price	Number Built	Weight
$745		2590

Photograph copyright Jim Benjaminson, used with permission.

Standard Coupe

Price	Number Built	Weight
$655

Body Overall	Beads and moulding	Fenders & Sheet Metal	Stripe	Wood wheels	Wire wheels
Black	Black	Black	Flake White	Black
Dundee Gray	Ardsley Green	Black	Packard Ivory	Ardsley Green	Cigarette

Photograph copyright Tod Fitch, used with permission.

Two Door Sedan

Price	Number Built	Weight
$675		2485

Body Overall	Beads and moulding	Fenders & Sheet Metal	Stripe	Wood wheels	Wire wheels
Atkin Gray	Black	Black	Orange Double Deep	Atkin Gray	Orange Double Deep
Chrysler Light Gray	Chrysler Dark Gray	Black	Packard Ivory	Chrysler Dark Gray	Cigarette
