1928 Plymouth
(Engineering Code Q)

Unless otherwise noted, price, engine numbers and body type production data is from [Bowman 1988a]. Specifications are from [Chrysler 1975] and serial numbers are from [Chrysler 1973]. Weights are from [Kimes 1996]. Production dates are from [benj 2007]. Paint information is from [Chrysler 1929a].

Highlights and commentary
Production and serial numbers
Specifications
Paint
Original Literature
Four Door Sedan
Standard Coupe
Two Door Sedan
Deluxe Coupe
Rumble Seat Roadster
Roadster
Phaeton

Highlights

First Plymouth rolled off the line on June 11, 1928 and was apparently considered by Chrysler as a 1929 model. Generally Model Q Plymouths are considered 1928 models today and the Model U is considered the 1929.

Advertising claimed “smooth speed up to 60 and more mile an hour.” The Plymouth came from the factory with four wheel internal expanding drum hydraulic brakes and full pressure lubrication.

Original Literature

Public Domain¹
(40.9 MB scan)
Submitted by Jason Anderson

Production

Model Name	Production		Plant	Serial Number		Engine Number
Model Name	Starting	Closing	Plant	Starting	Closing	Starting	Closing
4	June 14, 1928	January 2, 1929	Detroit	HL-950-P	HD-999-D	Q175000	Q242482
			Detroit	RW-000-P	RH-997-H
			Windsor	GP-000-P	GP-582-E

Specifications

Wheel base	Num Cylinders	Bore and Stroke	Cu. In.	Compression	BHP
109	4	3-5/8x4-1/8	170.3	4.6	45@2800

For download speed reasons, Detailed Specifications and Standards of Adjustment are found on a separate page.

Paint

[Chrysler 1929a], dated January 8, 1929, indicates that prior to serial number RH 103 C cars other than phaetons and roadsters were finished using Pittsburgh Plate Glass's Mimax materials. All phaetons, all roadsters and all cars after serial number RH 103 C were finished with DuPont Duco materials. It was specifically noted that while the color names were often the same for the two vendors products, the colors were different.

Color Name	DuPont Duco Number	PPG Mimax Number	Dupont/Nason Polyurethane
Ardlsey Green	2443038	ML3292
Biscay Green	2441258
Bolling Green Medium	2445348	ML3195
Coach Blue Deep	2443268	ML3196
Desert Sand	2441313	ML3193
Marine Blue	2441332	ML3262	CG131B Ful-Thane [Schaaf 2007]
Moss Agate Green	2445181	ML3478
Moonstone Gray	2445118	ML3289
Norman Gray	2445596	ML3197
Pyramid Gray	2441314	ML3194
Primrose Yellow	2445161	ML3288
Russet Brown		ML3243
Tobacco Brown		ML3242

Paint Codes

See note about paint and trim.

Code	Body	Fenders & Sheet Metal	Stripe	Wheels

Trim Codes

See note about paint and trim.

Code	Description

Four Door Sedan

Price	Number Built	Weight
$725		2510

Body Overall	Beads and moulding	Fenders & Sheet Metal	Stripe
Bolling Green Medium	Black	Black	Ditzler's Emerald Green Deep
Marine Blue	Black	Black	Gold Bronze

Photograph copyright Jim Benjaminson, used with permission.

Photograph copyright Tod Fitch, used with permission.

Standard (Business) Coupe

Price	Number Built	Weight
$670		N/A

Body Overall	Beads and moulding	Fenders & Sheet Metal	Stripe
Marine Blue	Coach Blue Deep	Black	Moonstone Gray

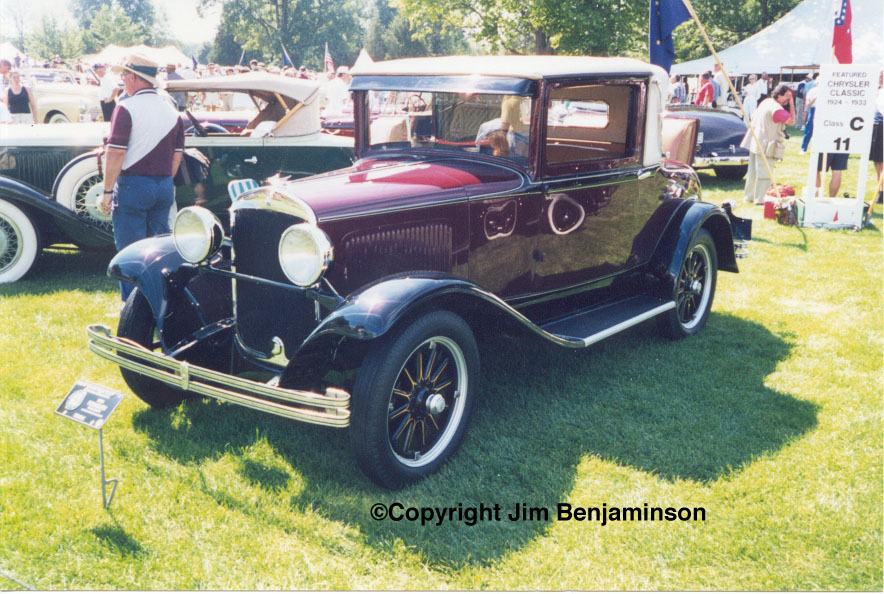

Photographs copyright Bill Broel Jr., used with permission.

Two Door Sedan

Price	Number Built	Weight
$690		2485

Body Overall	Beads and moulding	Fenders & Sheet Metal	Stripe
Desert Sand	Pyramid Gray	Black	Packard Ivory
Moss Agate Green	Ardlsey Green	Black	Packard Ivory
Bolling Green Medium	Black	Black	Ditzler's Emerald Green Deep
